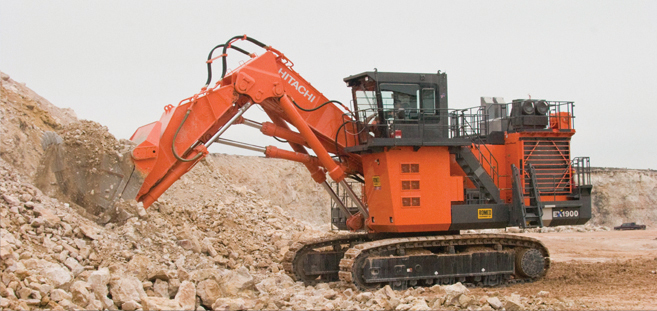

• EX1900-6

    • Engine rated power (kW) DIN 6271, net 775.0
    • Operating weight (kg)* 192 000
    • Bucket capacity (m³) SAE, PCSA Heaped) 4.40 - 12.0
    • Max. digging depth (mm) 8 180 - 14 430
    • Bucket digging force (kN) ISO 671.0

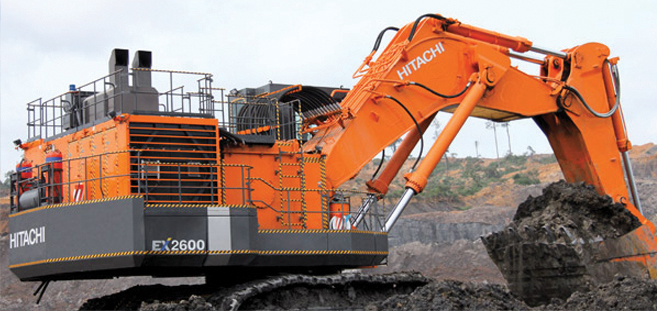

  • EX2600-6

    • Engine rated power (kW) DIN 6271, net 1 119.0
    • Operating weight (kg)* 254 000
    • Bucket capacity (m³) SAE, PCSA Heaped) 15.0 - 17.0
    • Max. digging depth (mm) 8 250
    • Bucket digging force (kN) ISO 830.0

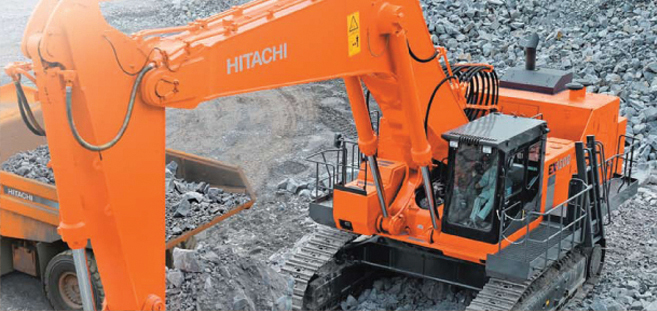

  • EX1200-6

    • Engine rated power (kW) DIN 6271, net 567.0
    • Operating weight (kg)* 114 000
    • Bucket capacity (m³) SAE, PCSA Heaped) 5.20 - 6.70
    • Max. digging depth (mm) 8 050 - 9 380
    • Bucket digging force (kN) ISO 569.0

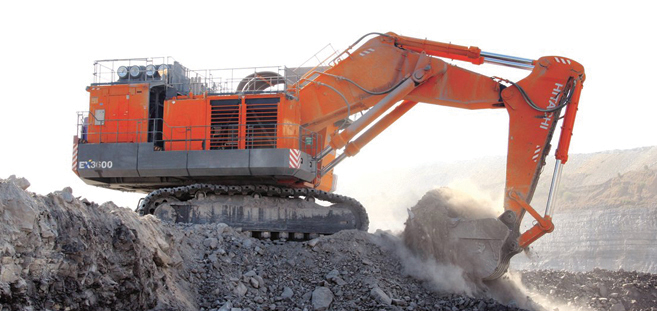

  • EX3600-6

    • Engine rated power (kW) DIN 6271, net 1 450.0
    • Operating weight (kg)* 361 000
    • Bucket capacity (m³) SAE, PCSA Heaped) 21.0 - 23.0
    • Max. digging depth (mm) 8 580
    • Bucket digging force (kN) ISO 1 050.0

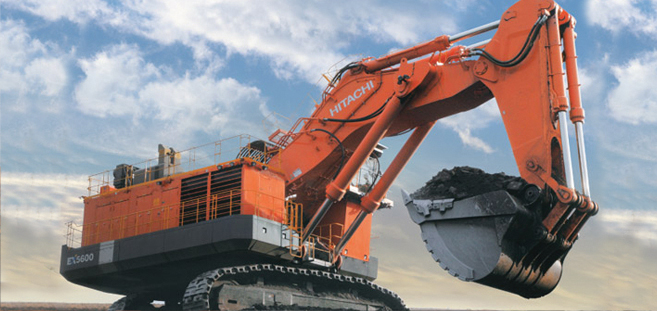

  • EX5600-6

    • Engine rated power (kW) DIN 6271, net 1 119.0 x 2
    • Operating weight (kg)* 537 000
    • Bucket capacity (m³) SAE, PCSA Heaped) 30.0 - 34.0
    • Max. digging depth (mm) 8 800
    • Bucket digging force (kN) ISO 1 480.0

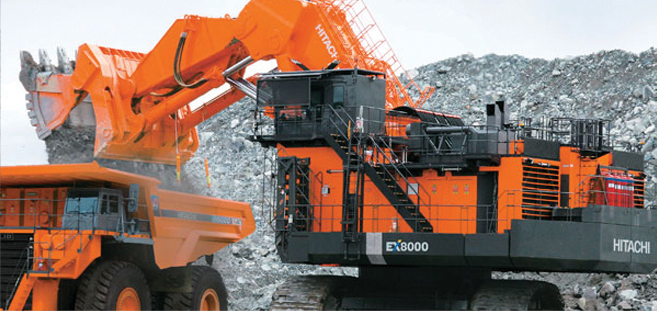

  • EX8000-6

    • Engine rated power (kW) DIN 6271, net 1 400.0 x 2
    • Operating weight (kg)* 811 000
    • Bucket capacity (m³) SAE, PCSA Heaped) 40.0
    • Max. digging depth (mm) 13 800
    • Bucket digging force (kN) ISO 2 230.0

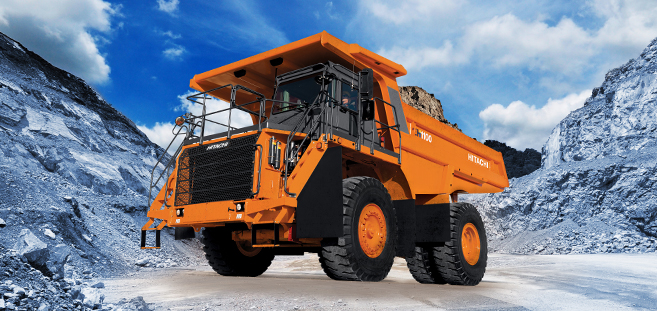

  • EH1100-3

    • Engine rated power (kW) SAE J1349, net 567 (760HP)
    • Max. Travel speed (km/h) 58
    • Nominal payload (kg) 63 500
    • Body capacity, heaped (m3) 41.5
    • Gross machine operating weight (kg) 108 950

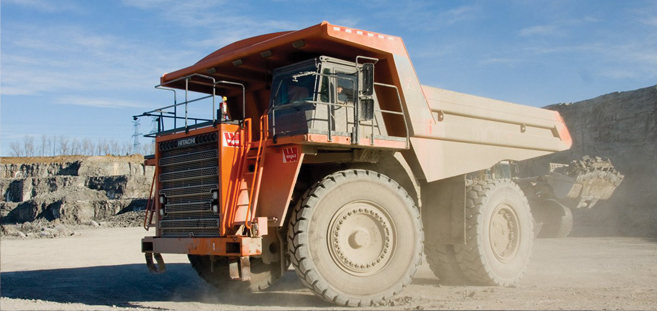

  • EH1700-3

    • Engine rated power (kW) SAE J1349, net 710.0
    • Max. Travel speed (km/h) 55.7
    • Nominal payload (kg) 95 200
    • Body capacity, heaped (m3) 60.4
    • Gross machine operating weight (kg) 163 300

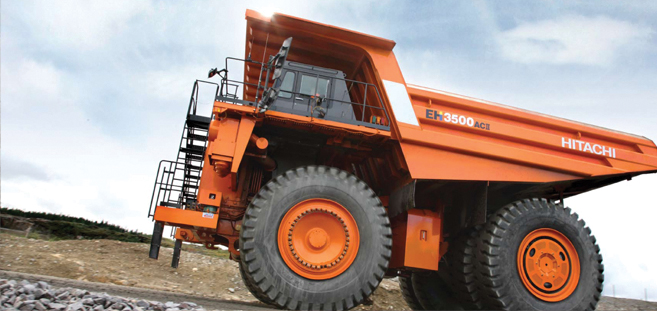

  • EH3500AC-3

    • Engine rated power (kW) SAE J1349, net 1 491
    • Max. Travel speed (km/h) 56
    • Nominal payload (kg) 181 000
    • Body capacity, heaped (m3) 117
    • Gross machine operating weight (kg) 322 000

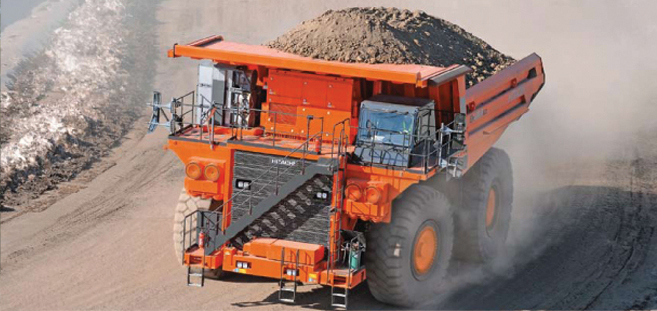

  • EH4000AC-3

    • Engine rated power (kW) SAE J1349, net 1 864
    • Max. Travel speed (km/h) 56
    • Nominal payload (kg) 221 000
    • Body capacity, heaped (m3) 154
    • Gross machine operating weight (kg) 384 000

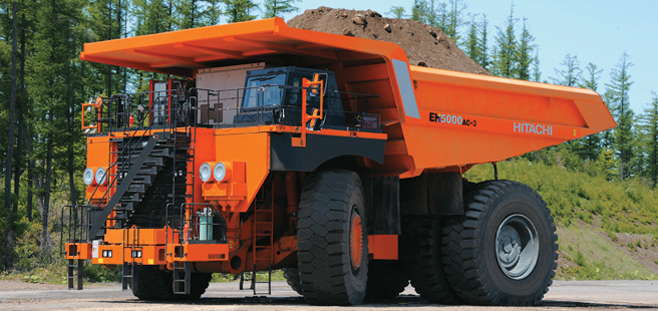

  • EH5000AC-3

    • Engine rated power (kW) SAE J1349, net 2 125
    • Max. Travel speed (km/h) 56
    • Nominal payload (kg) 296 000
    • Body capacity, heaped (m3) 202
    • Gross machine operating weight (kg) 500 000
